Once the receptor and maps have been correctly set up then the docking procedure can begin.

There are three possible options to choose when On-screen Demo Dock, Setup Batch Ligand, or Dock Chemical Table docking. (Please note some of the options may be limited for users without ICM-VLS)

• On-screen Demo Dock is ideal when you have a single ligand and simply want to re-dock it to the receptor. For anything more advanced, such as multiple ligands or larger workflows, use Batch Docking or Dock Chemical Table (see below). It can also be used to view the ligand docking to the pocket which is useful for teaching or demonstration purposes. In ICM versions 3.8-5 and older this option was called Interactive Docking.
• BATCH docking will run in the background and is an ideal choice for screening a database of compounds e.g. vls.
• Dock Chemical Table will allows you to easily dock a chemical spreadsheet / sdf file that is loaded into ICM.

[ On-screen Demo Dock: Mol Table Ligand | On-screen Demo Dock: Loaded Ligand ]

• Click on the menu Docking/On-screen Demo Dock

Choose either Mol Table Ligand or Loaded Ligand

If you have a chemical table already loaded into ICM you can use this option to dock chemicals in it. You can read mol/mol2 or sdf files into ICM by using File/Open. They will be displayed in a table.

• Enter the Docking Project Name
• Use the drop down arrow to find the table of ligands you wish to dock.
• Enter the number of the ligand in the table you wish to dock. For example, if the ligand is in row 6 enter 6.
• If you have ICM-VLS you can retrieve an ICM docking score for the docked ligand.
• 'Effort' or thoroughness represents the length of the simulation. Generally 1 is a reasonable value for buried hydrophobic pockets. If you are docking to solvent exposed pockets or pockets containing metal ions you may wish to increase this parameter.
• Display run will display the ligand sampling the energy in the ligand binding pocket. Although this is fun to watch this significantly slows down the docking operation.

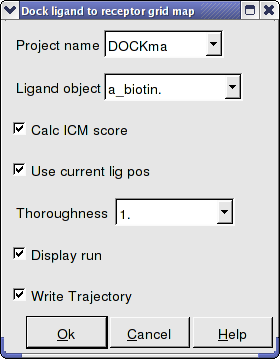

If you have a ligand as an ICM object you can use this option.

• Enter the Docking Project Name.
• Use the drop down arrow to find the ligand.
• If you have ICM-VLS you can retrieve an ICM docking score for the docked ligand.
• If the ligand is already located in the pocket you can use this option. However by default the ligand will start sampling in the center of the pocket so this option does not need to be used.
• Thoroughness represents the length of the simulation. Generally 1 is a reasonable value for buried hydrophobic pockets. If you are docking to solvent exposed pockets or pockets containing metal ions you may wish to increase this slightly.
• Display run will display the ligand sampling the energy in the ligand binding pocket. Although this is fun to watch this significantly slows down the docking operation.
• You can write the docking simulation to a trajectory file. Please see the command language manual for more information on this.

[ From Loaded ICM Object | From File | From Mol/Mol2 | From Indexed Database | From MolCart Database ]

Batch Docking is used for running docking jobs in the background. It is ideal for large-scale docking and virtual ligand screening jobs.

• Use the menu option Docking/Batch Ligand Setup to setup the docking run.
• Once setup use the menu option Docking/Run Docking Batch to run the batch docking.

• Enter the name of the docking project.
• Ligand Molecule Use the drop down button to find the loaded ligand or enter the ICM selection language.
• Ligand Name A docked ligand will be given a name. Change this if you wish or use the default name.
• Once setup use the menu option Docking/Run Docking Batch to run the batch docking.

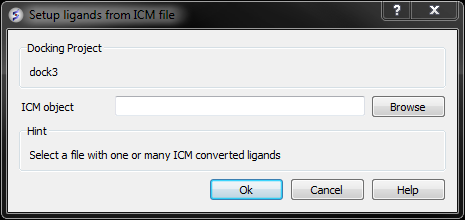

• Browse for the ICM Object.
• Click OK

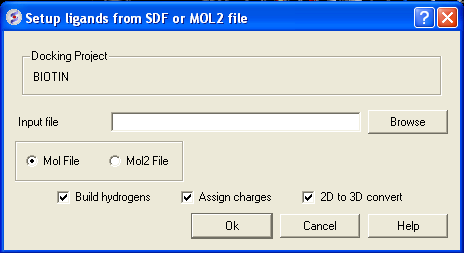

If your ligand is a MOL or MOL2 file then

• Browse for your MOL/MOL2 file.
• Select whether your ligand is in MOL or MOL2 format.
• If you wish hydrogens to be added to your compound or charges to be assigned then click on the appropriate boxes in the display panel.
• Click OK

In most cases the ligand input file will be an SDF or MOL2 file. These files need to be indexed by ICM before they can be used in VLS runs (see next section of this manual). The index is used to allow fast access to an arbitrary molecular record in a large file such as an SDF file which in some cases contains over one million compounds.

To index an sdf file:

• Click on the menu Docking/Tools/Index Mol/Mol2 File/Database to generate the index. The following data entry box will be displayed.

• Enter the name of your Mol/Mol2 file and enter the name you wish to call your index file.
• Select whether your file is in Mol or Mol2 format.

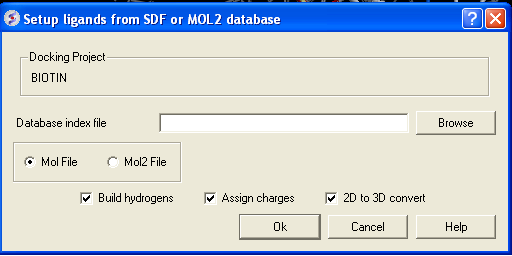

• Browse for your Index file.
• Select whether your ligand is in MOL or MOL2 format.
• If you wish hydrogens to be added to your compound or charges to be assigned then click on the appropriate boxes in the display panel.
• Click OK

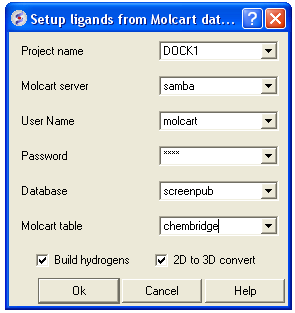

From MolCart - only available with ICM-VLS

• Enter docking project name.
• Enter the MolCart server
• Enter your username
• Enter Password
• Enter the Database Name
• Enter the name of the MolCart table within the Database
• Select whether you would like to build hydrogens or convert the compounds from 2D to 3D.

IMPORTANT Once you have setup the docking you need to set it running using the menu option Docking/Run Docking Batch

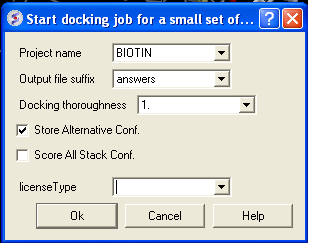

• Docking/ Run Docking Batch
• Enter the Docking Project Name
• Batch docking will generate an output file - enter the name you wish to call this file here.
• Thoroughness represents the length of the simulation. Generally 1 is a reasonable value for buried hydrophobic pockets. If you are docking to solvent exposed pockets or pockets containing metal ions you may wish to increase this slightly.
• Selecting Store Alternative Conf will allow you to look at all conformations in the energy stack.
• Score All Stack Conf. will allow you to determine an ICM docking Score for all members of the stack - this will slow the docking down.
• License type: For nearly all license (e.g. standard ICM-VLS licenses) types you need to leave this entry blank. If you have a -vlscluster license or a molvls license (-vls) then select the option from the drop down list. Any questions first check your license.dat file or Email support@molsoft.com.
• Click OK IMPORTANT - IF THE JOB IS RUNNING IT WILL TELL YOU bgrnd job AT THE TOP OF THE GUI - SEE BELOW

Docking simulation is running

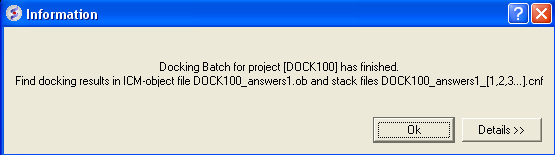

Docking simulation has ended message

To check the status of your docking simulation

• Windows/Background Jobs

To dock directly from a chemical table:

Setup the receptor and read in the chemical table.

Select the chemicals in the table you wish to dock. If no selection is made ICM will dock the whole table. You can make selections by clicking on the row numbers whilst holding CTRL (non-contiguous selection) or TAB (contiguous selection).

Click on the Docking menu and select Dock Chemical Table. To change the default docking options, uncheck Dock Immediately. This will display a panel next to the chemical table where you can adjust settings, such as increasing the number of conformations to save. Then click Dock in the tools panel.

Once the docking has finished a hitlist will be displayed.
