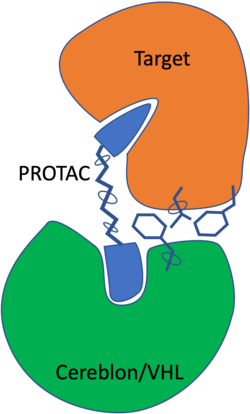

Targeted Protein Degradation (TPD) is an approach that is attracting substantial interest for modulating challenging drug targets. A major class of TPDs are Proteolysis-Targeting Chimera protein degraders (PROTACs). PROTACs are heterobifunctional molecules where two ligands are joined by linker. One ligand recruits the target and the other recruits and binds an E3 ubiquitin ligase. This interaction induces ubiquitylation of the target and degradation by the ubiquitin-proteasome system, the PROTAC is then recycled. The MolSoft ICM PROTAC modeling method: Start with structures of target protein and cereblon or VHL complexes with their respective binding ligands/moieties PROTAC molecule is modeled into first complex and then into second complex using ligands as templates Internal coordinate MC simulation sampling linker torsions optimizes tripartite complex Surrounding sidechains also flexible Resulting ensemble of low energy conformers is re-evaluated using scoring function optimized for protein-protein docking | Watch a Webinar on PROTAC Modeling|

The ICM PROTAC modeling method:

• Start with structures of target protein and cereblon or VHL complexes with their respective binding ligands/moieties.
• PROTAC molecule is modeled into first complex and then into second complex using ligands as templates.
• Internal coordinate MC simulation sampling linker torsions optimizes tripartite complex.
• Surrounding sidechains also flexible.
• Resulting ensemble of low energy conformers is re-evaluated using scoring function optimized for protein-protein docking.

How to Run PROTAC Modeling - Example Bromodomain-Cereblon PROTAC: Setup

• Read into ICM the target PDB Bromodomain "3mxf" and Cereblon "4CI1".
• Delete molecules that are not needed - you should have just the ligand and receptor for both the target and cereblon. To delete hold "CTL" button and left click on the molecules you want to delete - then right click and choose delete.
• Convert both PDBs into an ICM object.
• Prepare the PROTAC molecule you want to dock - you can sketch it, read in a mol file or extract it from a PDB. In this example we extract the PROTAC in pdb "6bn7" which is the Bromodomain-Cereblon-PROTAC complex.

Run PROTAC Modeling

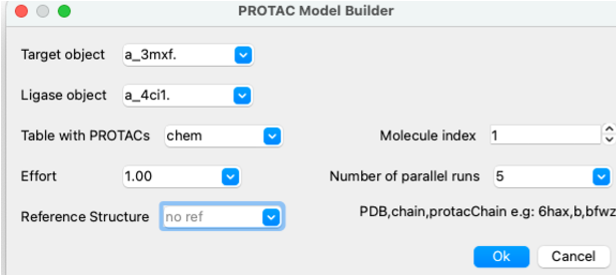

• Docking/Protein-Protein Docking/PROTAC Model Builder
• Select the target and Ligase object from the drop down button. In this example target=a_3mxf. ligase=a_4ci1.
• Enter the name of the table that contains your PROTAC. Molecule index= row number if you have multiple PROTACS in the table.
• Effort is the length of the simulation and changes Monte-Carlo simulation thoroughness (length of simulation) , e.g. effort=3. for more extensive sampling. If you are running five parallel runs then effort=1. is fine.
• Enter the number of parallel runs - we recommend 5 runs.
• Optional. For evaluation purposes: calculate PROTAC RMSD versus PDB structure, e.g., for this example we can compare with the Bromodomain-Cereblon-PROTAC complex pdb 6bn7 'b' chain and name of protac molecule 'brn3' so enter: 6bn7,b,brn3.
• Click OK to run the simulation - you will see a progress bar (bottom right) you can also monitor using Windows/Background jobs.

Results When the simulation has finished a dialog box will be displayed asking you to display the results. Click OK and a table of the results will be displayed. Single click on a row and the PROTAC complex will be displayed and loaded into the ICM Workspace (left hand side panel). The complexes are ranked by the energy column 'ener'.

• i = rank order
• ener = total energy this is the main score for ranking
• rmsd = RMSD to reference structure (if provided)
• comm = user defined comments as string
• ey = force-field energy
• sf = surface energy term.
• vw = nonbonded interatomic pairwise interactions van der Waals energy.
• el = Electrostatic energy
• deltaSurf = deltaSurf is the solvent-accessible surface area buried between the two proteins (the degrader small molecule is not included in this calculation)
• EnerSc = Energy of side chains

Interpreting PROTAC Conformers in ICM

Use the 'ener' column for ranking individual conformers

The 'ener' column represents the internal energy of each PROTAC conformer. It serves as a useful first-pass filter to eliminate high-energy, unrealistic conformations. However, the conformer with the lowest internal energy is not always the most biologically relevant, especially for flexible systems like PROTACs.

Use clustering to identify families of similar low-energy conformers

Clustering highlights recurring conformer geometries that are both energetically favorable and entropically accessible. A dense cluster of low-energy conformers is often indicative of a stable and plausible binding mode. In contrast, an isolated low-energy conformer may represent a strained geometry that is unlikely to be relevant in a biological setting.
