There are a variety of ways to save chemical structures. Chemicals can be saved in mol, sdf and smiles format from a chemical table (spreadsheet), molecular editor or from the ICM-Workspace. An image of the 2D sketch can be saved as an image from a chemical table.

If you wish to save your chemical spreadsheet and plots and setup.

• File/Save As - ICM Binary Format (.icb)

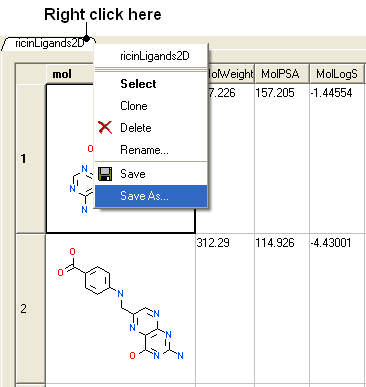

To save all the chemicals in a table as an SDF file:

• Right click on the chemical table header.
• Select Save as..
• Select Save as type: (SD file, Mol file or comma separated value - csv)

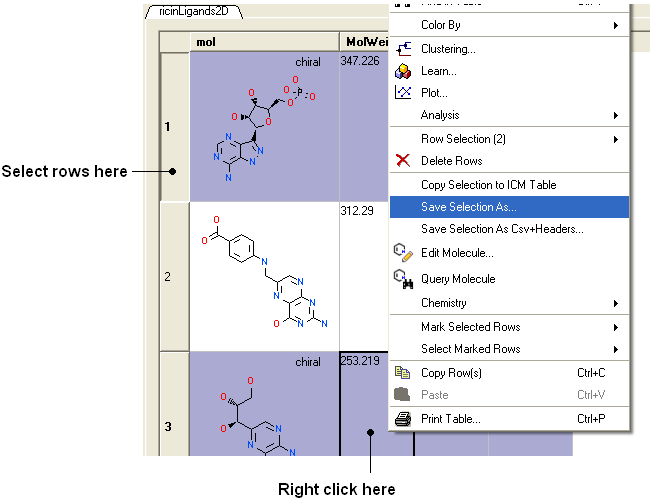

To save selected chemicals in a table as an SDF file:

• Select the row(s) of the chemicals you wish to save in SDF format. Row selections in tables is described in the Tables chapter.
• Right click on any of the selected rows and select Save Selection As....

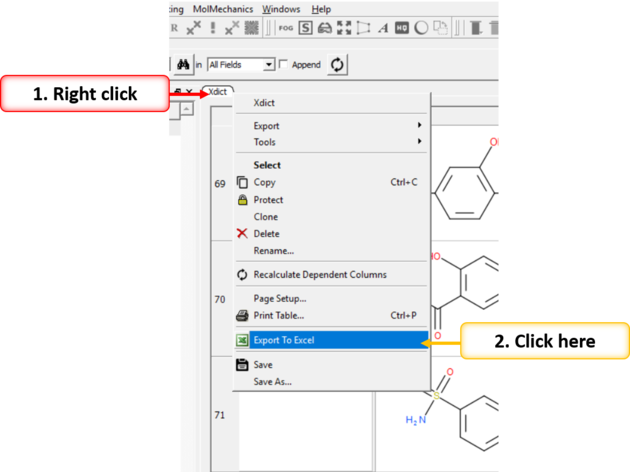

To export to Excel:

• Right click on the table header and select "Export to Excel".

Chemicals drawn in the ICM Molecular Editor can be saved:

• File/Save or File/Save As... or Edit/Copy as SMILES

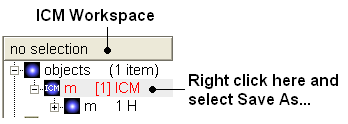

If you have converted a chemical sketch into 3D, the 3D structure will be displayed in the ICM Workspace. To save this structure in mol format:

• Right click on the name of the chemical in the ICM Workspace.
• Select Save As..

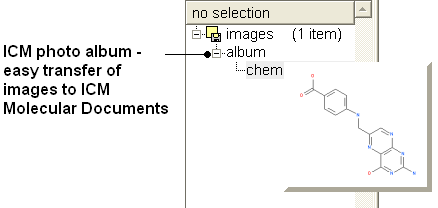

To save an image of a chemical sketch:

• The chemical needs to be displayed in a chemical table.
• Right click on the 2D image
• Select Save Molecule As Image

The IUPAC nomenclature for a compound can be generated on the fly for a chemical. You can view the IUPAC name in the Molecule Editor or you can insert a column into a chemical spreadsheet with the IUPAC name.
