9.15 Effect of Mutation on Protein-Peptide
Next

This option uses the same methodology as the effect of mutation on Protein-Protein interaction except that backbone in the peptide is flexible.

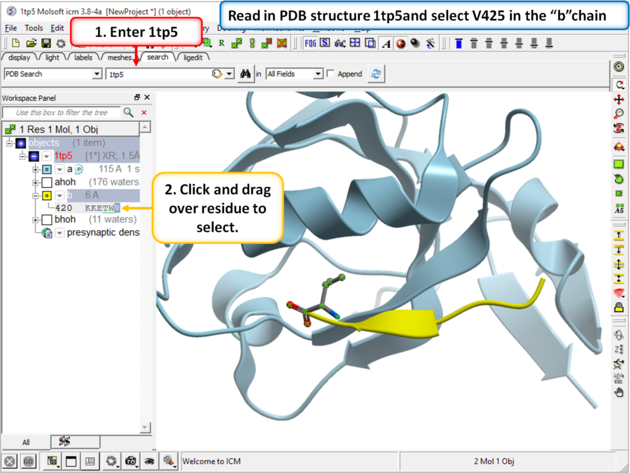

Step 1 Read in your PDB structure. In this example we will use PDB 1 tp5 and select V425 in the peptide (b chain).

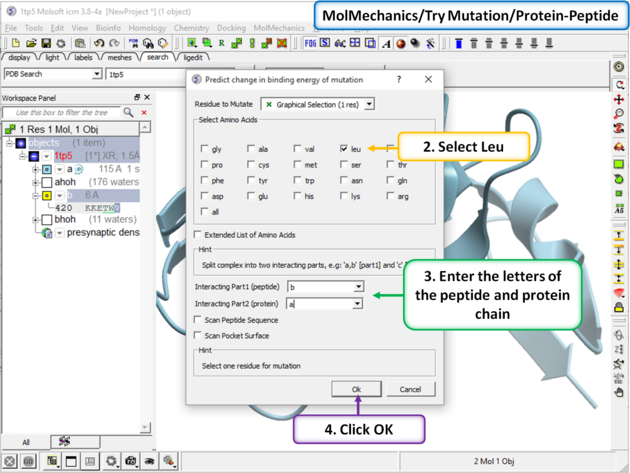

Step 2 In this example we will choose to see the effect of mutation of Val > Leu. Enter the letter of the chain for the interacting part 1 (peptide) and part 2 (protein). In addition you can choose:
  • Scan Peptide Sequence This option will try a single residue side-chain mutation at each position in the peptide.
  • Scan Pocket Surface This option will try a single residue side-chain mutation at each position in the protein that is in contact with the peptide.

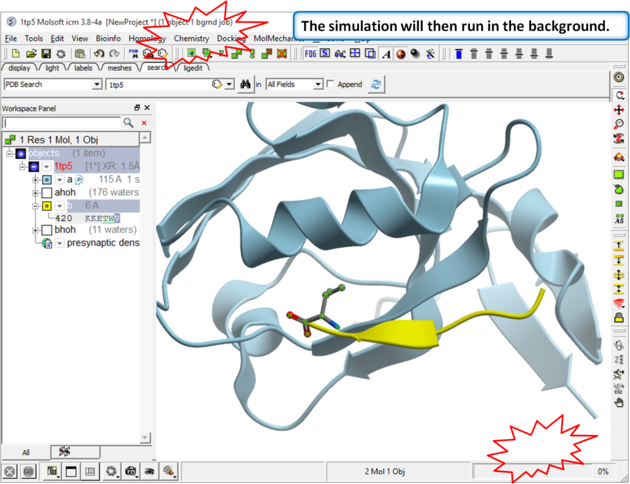

Step 3 The simulation will run in the background and may take a while to finish if the option "all" or "Scan Sequence" is selected.

Step 4 A message dialog box will let you know when your simulation has finished.

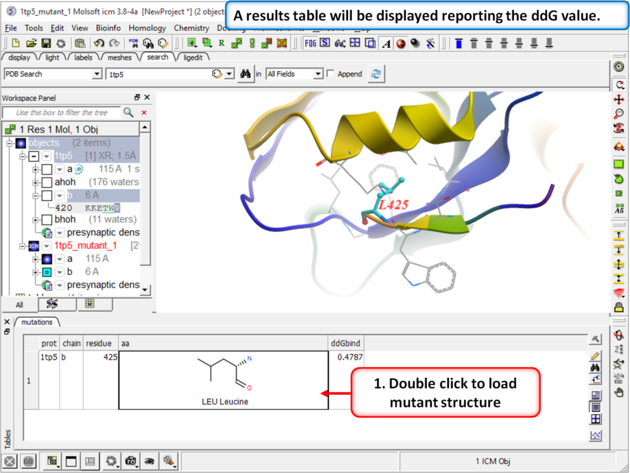

Step 5 A table reporting the free energy change in peptide will be displayed (ddG kcal/mol). Double click a row of the table to load and display the mutated structure.

How to interpret the results:
